3M™ Raised Pavement Marker (RPM) / ROAD STUDS/ILC
3M™ Raised Pavement Markers (RPMs), commonly known as road studs or reflective pavement markers, are high-performance road safety devices designed to improve lane visibility and driver guidance during day, night, and adverse weather conditions. These durable markers use 3M™ Diamond Grade™ microprismatic reflective optics to provide excellent retroreflection by returning vehicle headlight illumination back toward drivers.
3M™ RPMs are widely used on highways, expressways, bridges, tunnels, and urban roads to clearly define lanes, road edges, curves, and hazardous locations

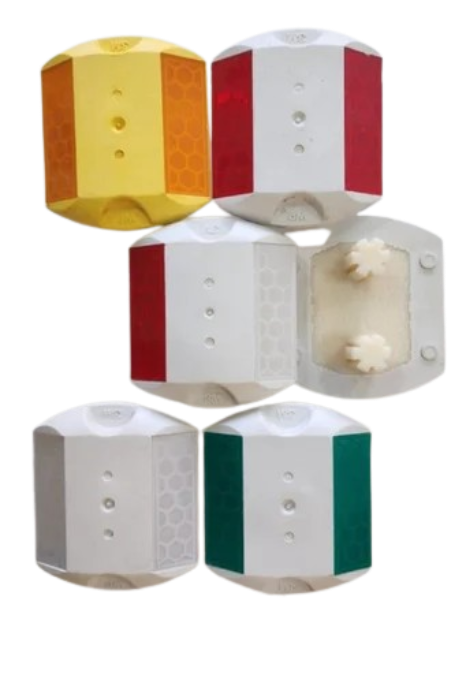

3M RPM
Types of 3M™ RPM Road Studs
| Type | Application |
|---|---|
| One-Way Reflective Studs | Edge lines and directional guidance |
| Two-Way Reflective Studs | Center lines and bidirectional roads |
| White Reflectors | Lane guidance and road marking |
| Red Reflectors | Road edge / restricted areas |
| Yellow Reflectors | Median and caution areas |
| Blue/Green Reflectors | Special traffic applications |
Technical Highlights
| Feature | Description |
|---|---|
| Product Type | Raised Pavement Marker (RPM) |
| Reflective Technology | Diamond Grade™ Microprismatic Optics |
| Body Material | High-strength thermoplastic |
| Installation Surface | Asphalt & Concrete Roads |
| Visibility | Day & Night Reflective Performance |
| Application | Highways, Roads, Bridges & Safety Zones |
Technical Specifications Table
| Feature / Property | Specification Detail |
|---|---|
| Product Series | 3M™ Raised Pavement Marker Series 290 |
| Optics Grade | 3M™ Diamond Grade™ Microprismatic |
| Compliance Standards | ASTM D4280, EN 1463-1 (Type P3A Permanent) |
| Compressive Strength | ≥ 6,000 lbf (2,722 kg) without structural breakage |
| Flexural Strength | Meets ASTM D4280 requirement of 2,000 lbf (907 kg) |
| Dimensions (Standard) | Length: 88.9 mm | Width: 101.6 mm | Height: 15.88 mm Shank Length : 30MM |
| Reflective Directions | Available in One-Way or Two-Way viewing angles |

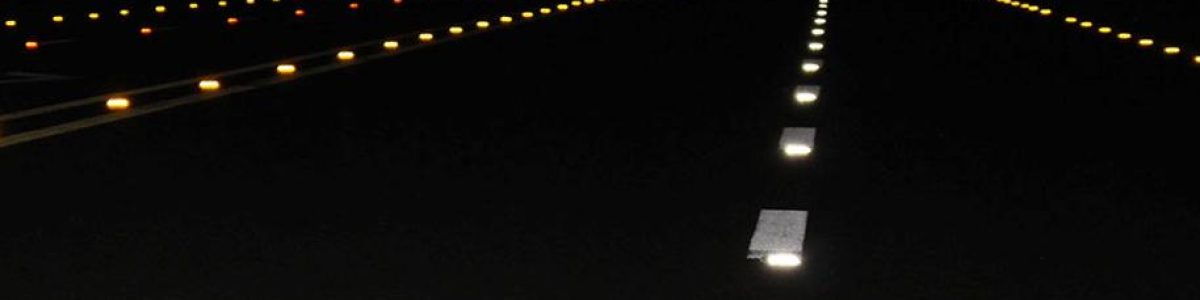

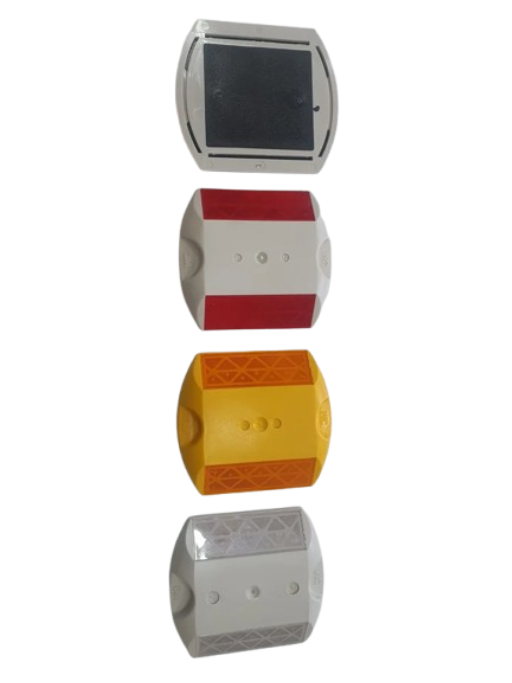

3M ILC
Types of 3M™ RPM Road Studs
| Type | Application |
|---|---|
| One-Way Reflective Studs | Edge lines and directional guidance |
| Two-Way Reflective Studs | Center lines and bidirectional roads |
| White Reflectors | Lane guidance and road marking |
| Red Reflectors | Road edge / restricted areas |
| Yellow Reflectors | Median and caution areas |
| Blue/Green Reflectors | Special traffic applications |
Technical Highlights
| Feature | Description |
|---|---|
| Product Type | 3M™ ILC (Intelligent Lane Control) |
| Reflective Technology | Diamond Grade™ Microprismatic Optics |
| Body Material | High-strength thermoplastic |
| Installation Surface | Asphalt & Concrete Roads |
| Visibility | Day & Night Reflective Performance |
| Application | Highways, Roads, Bridges & Safety Zones |
Technical Specifications Table
| Feature / Property | Specification Detail |
|---|---|
| Product Series | 3M™ Original ILC Road Stud Series (290C / 290CE) |
| Optics Grade | 3M™ Diamond Grade™ Microprismatic |
| Compliance Standards | ASTM D4280, EN 1463-1 (Type P3A Permanent) |
| Compressive Strength | ≥ 6,000 lbf (2,722 kg) without structural breakage |
| Flexural Strength | Meets ASTM D4280 requirement of 2,000 lbf (907 kg) |
| Dimensions (Standard) | Length: 88.9 mm | Width: 101.1 mm | Height: 16 mm |
| Reflective Directions | Available in One-Way or Two-Way viewing angles |
